Aug 11, 2022

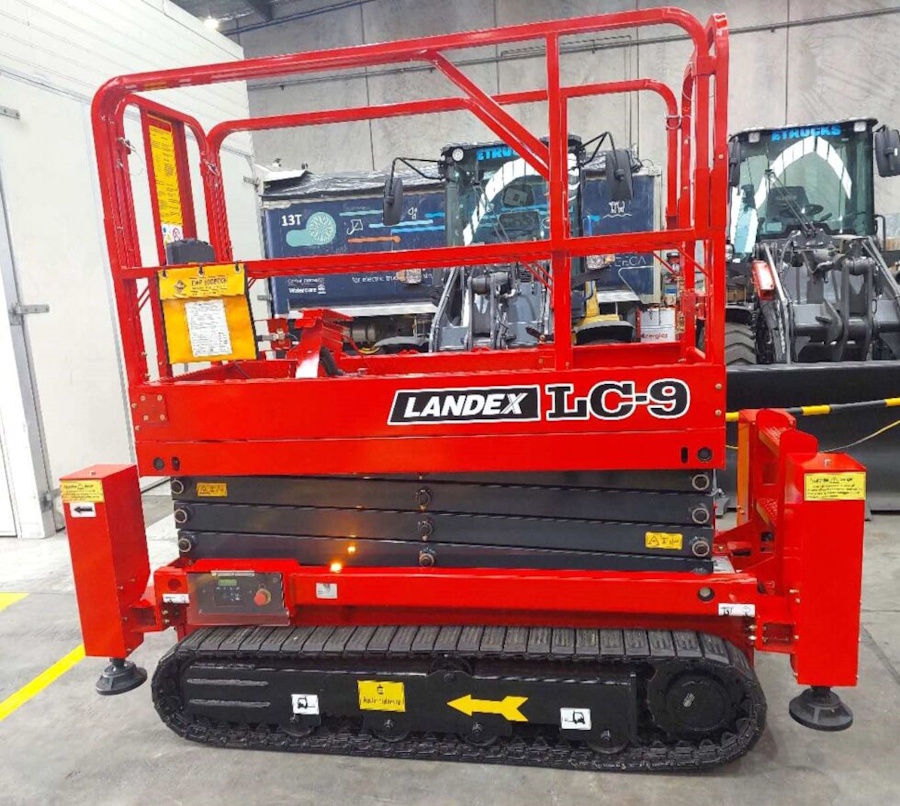

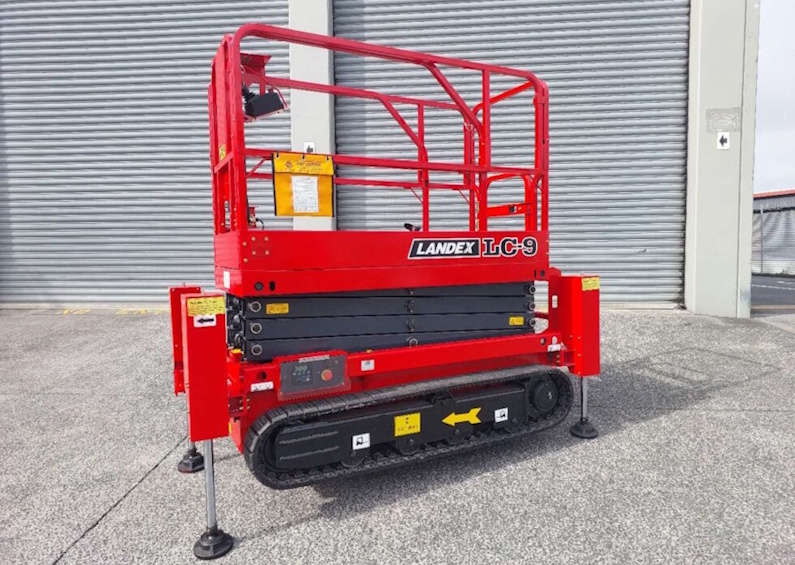

- 6.7m platform height
- 8.7m working height crawler scissor with stabilizing legs
- 8m, 10m, 12m, 14m and 16m working height also available
- Zero turn Climbs up to 25%
- 230kg lift capacity
- Speed 2.4km/h
- High ground clearance
- Wind rated for outdoor use (one man)
- Maintenance free batteries
- Non marking tracks (optional)
- Fold down handrails
- All the required safety cut-outs and tilt sensors.
- 24 month parts replacement warranty 5 year structural warranty
- Built to latest New Zealand Standard AS/NZ1418.10-2011
Aug 11, 2022

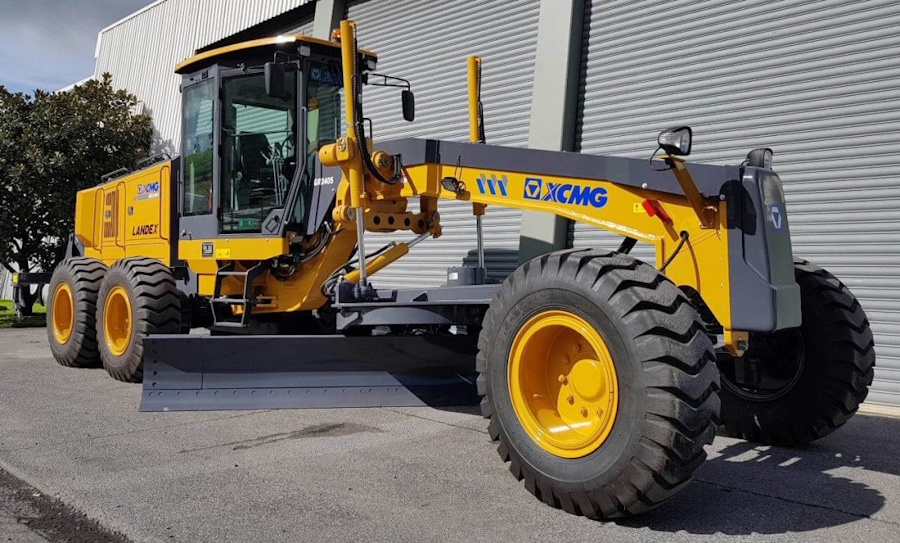

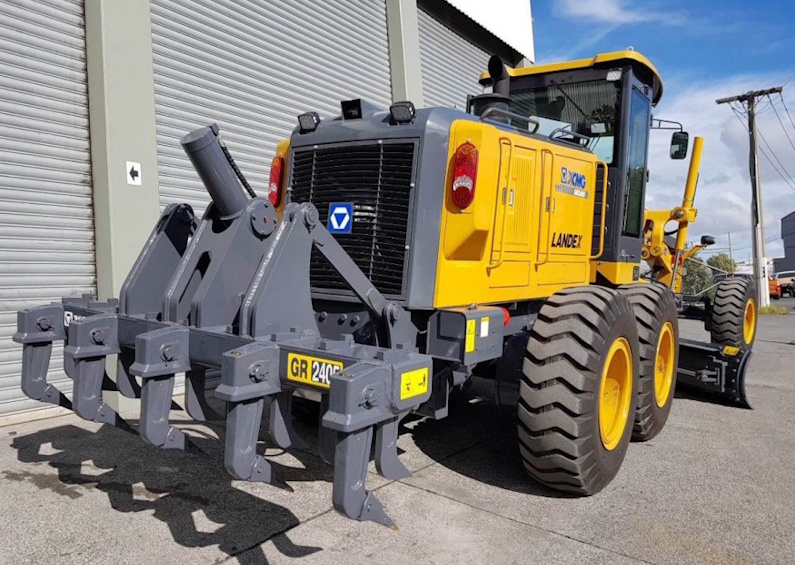

- Weight 16,960
- Pivot point behind the cabin
- DF Cummins QSB6.7 engine developing 240hp
- Dana transmission and wet axle
- Joystick control, rear rippers, front dozer blade available
Aug 11, 2022

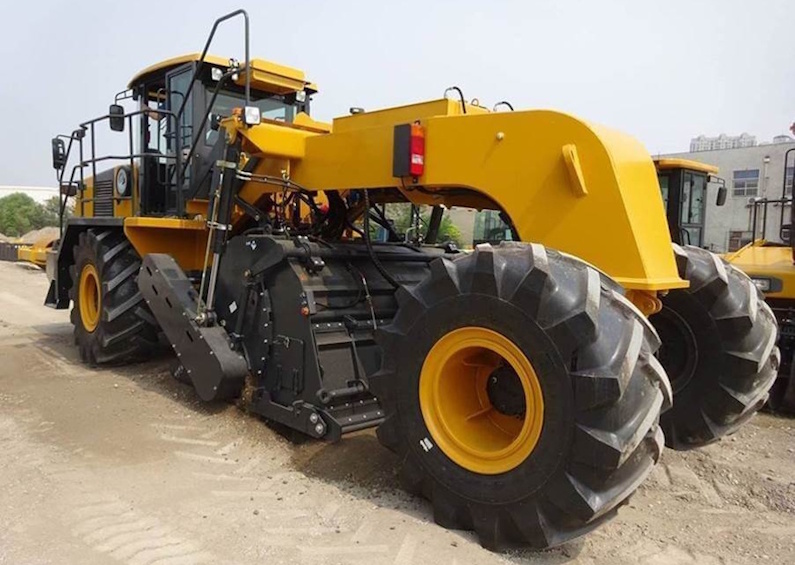

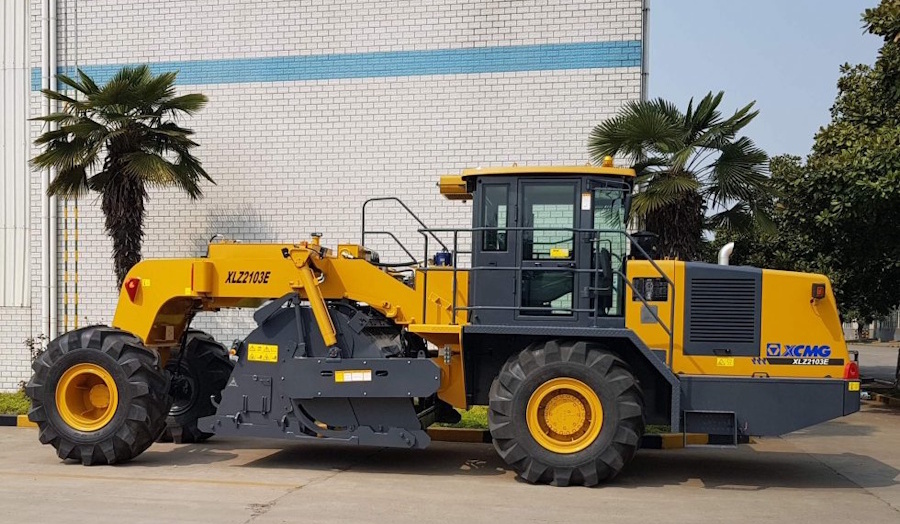

- Engine Model WP12.400N
- Rated power/speed (kW/rpm) 294
- Working speed (km/h) 0-3
- Traveling speed (km/h) 0-23
- Theoretical gradeability (%) 20
- Ground clearance (mm ) 450
- Working weight (kg) 15600
- Maximum Milling width (mm) 2100
- Maximum milling depth (mm) 0-400
- Amount of tools pcs 168
- Overall dimensions (mm) 8740×2765×3450
- Fuel tank (L) 450
- Hydraulic oil tank (L) 450
Aug 11, 2022
Aug 11, 2022
- Operating weight：38500 kg
- Engine: Cummins B6.7 173kW/2000rpm (USA)
- Travel speed（H/L)：5.0/3.0 km/h
- Swing speed：9.8 r/min
- Gradeability: 35°/70%
- Length of boom：6200 mm
- Length of arm： 3110 mm
- Oil flow 2 x 320l/min
- Oil pressure 34/37Mpa
- Fuel tank 1245l
- Oil tank 330l
- Hydraulic brake system
- Fully protected cabin (38mm thick windscreen) with roof and rear window exits
